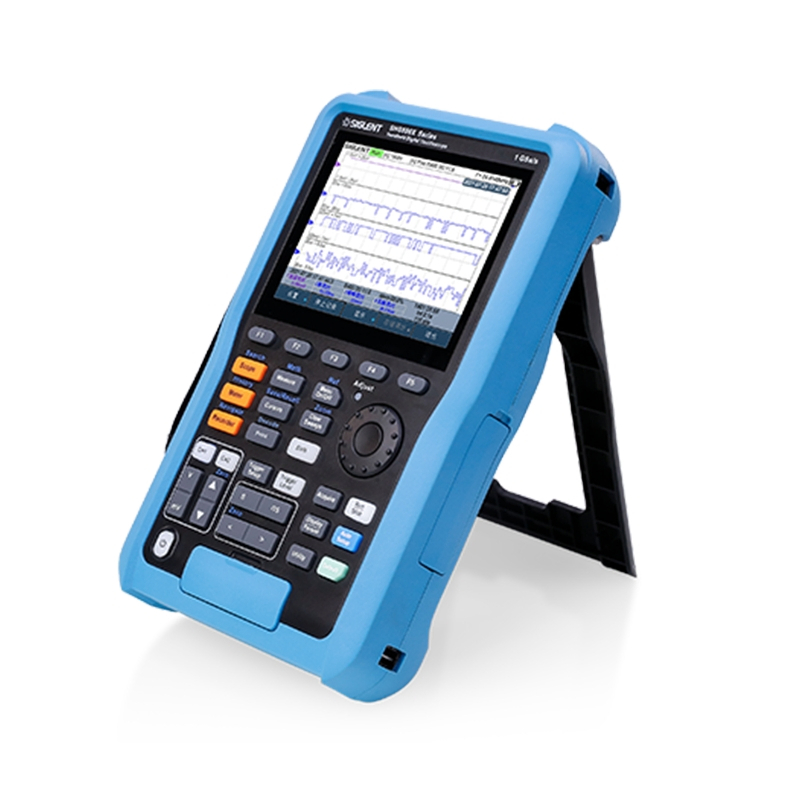

SHS800X Series Handheld Oscilloscope


Product Introduction
The SHS800X series handheld oscilloscopes have gained widespread recognition in the market for their cost-effectiveness and outstanding performance.This series offers bandwidth options ranging from 70 MHz to 200 MHz, making it suitable for various application scenarios.Its dual-channel design, combined with a sampling rate of 1 GSa/s and a storage depth of 12 Mpts, ensures the integrity and accuracy of signals.
Additionally, the SHS800X series integrates eight common multimeter functions such as voltage, current, and resistance, providing users with a more convenient testing experience. The ultra-long battery life and compact design make it an ideal choice for engineers to carry with them.

Main characteristics
Integrated oscilloscope, serial trigger and decoder, spectrum analysis, data logger and multimeter functions into a convenient and portable design
100 MHz or 200 MHz bandwidth models
Sampling rate of 1 GSa/s (single-channel),  500 MSa/s (two-channels)
Record length up to 12 Mpts
Waveform recording up to 22 hours
IP Rating: IP51
